The best comes from the best understanding
11 Years
| Ask Lasest Price | |
| Brand Name : | Sutai |
| Certification : | ISO.CE,ROHS,TUV |
| Model Number : | ST-80M01630 |
| Price : | 100 |
| Delivery Time : | 3-30 |
| Payment Terms : | TT/LC |
| Supply Ability : | 10000 |

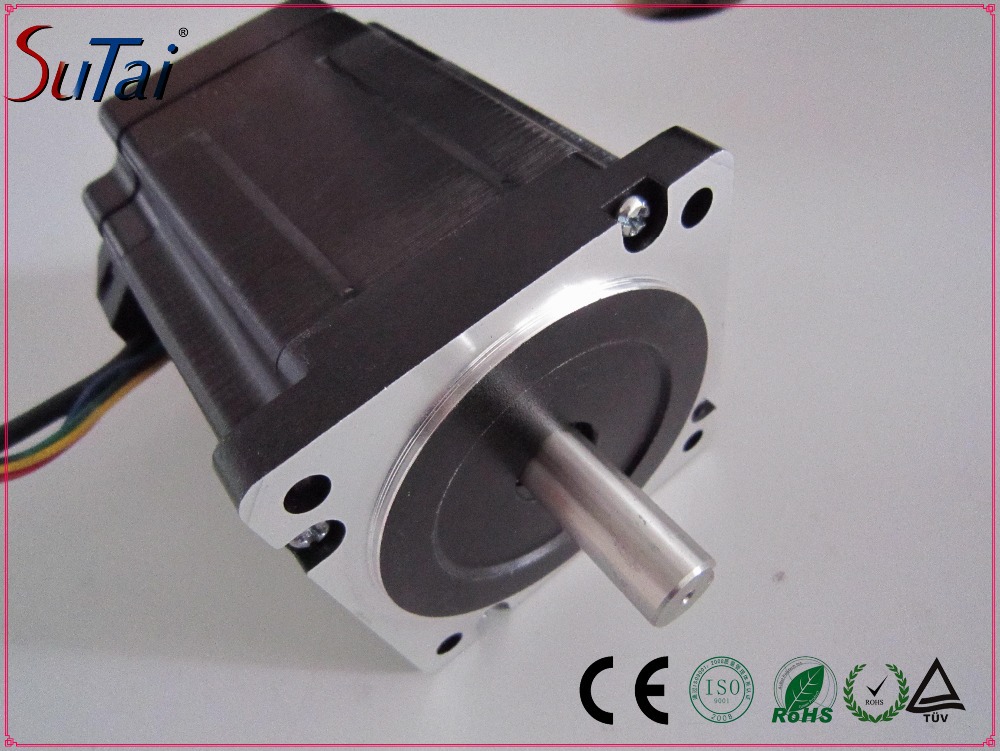

High-Speed AC Servo Motor
Six strength
1.High effiency
2.High precision
3.Energy-saving
4.Warranty one year
5.Closed loop
6.High response
| Packaging Details: | Carton for 500w high torque servo motor factory customized |
| Delivery Detail: | Depend on your quantity for 500w high torque servo motor factory |
Serious model | 80ST-M 01630 | 80ST-M 02430 | 80ST-M 03230 | 80ST-M 04030 | ||||||||||||
Rated power Pn(W) | 500 | 750 | 1000 | 1200 | ||||||||||||
Rated toque Tn(N.m) | 1.6 | 2.4 | 3.18 | 4.0 | ||||||||||||
Rated speed n(rpm) | 3000 | 3000 | 3000 | 3000 | ||||||||||||
Rated current In(A) | 3 | 4.5 | 6 | 7.2 | ||||||||||||
Maximum torque moment Tm(N.m) | 4.78 | 7.16 | 9.55 | 12 | ||||||||||||
Maximum current moment Im(A) | 9 | 13.5 | 18 | 21.6 | ||||||||||||
BEMF constant Ke(v/kr pm) | 40 | 34 | 34 | 56 | ||||||||||||
Torque constant Tt(N.m/A) | 0.64 | 0.8 | 1.1 | 0.9 | ||||||||||||
Electrical time constant te(ms) | 1.66 | 2.2 | 2.4 | 2.58 | ||||||||||||
Moment of inertia Jm(Kgcm) | 0.8 | 1.2 | 1.5 | 1.9 | ||||||||||||
Bearing radial force Fr(N) | 335 | 335 | 335 | 335 | ||||||||||||
Bearing axial force Fa(N) | 167.5 | 167.5 | 167.5 | 167.5 | ||||||||||||
Motor length L(mm) | 114 | 131 | 150 | 170 | ||||||||||||
Weight Kg | 2.6 | 3 | 3.3 | 3.9 | ||||||||||||
Position feedback devices | 2500pprOptical encoder (incremental) or cosine rotary encoder | |||||||||||||||
Temperature Sensor | Optional | |||||||||||||||
Cooling | Fully enclosed , Automatic Cooling | |||||||||||||||
Insulation class | Class B (130°) | |||||||||||||||
Protection class | Ip65 , Shaft Ip54 | |||||||||||||||
Environment | temperature | -25 ~ +40℃(No icing) | ||||||||||||||
Humidity | 95%RH(Non-condensing) | |||||||||||||||
Environment | Away from corrosive,Flammable gas,oil droplets,dust | |||||||||||||||
Altitude | The highest elevation of 4000 meters,Altitude of over 1000 meters, for each additional 100 meters, a power reduction of 15% | |||||||||||||||
Rated conditions | Temperature Rise | When the ambient temperature is 40 ℃, the housing surface temperature 60K | ||||||||||||||
Motor winding plug | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |||||||||
U Red | V Yellow | W Blue | GND Yellow/Green | |||||||||||||
Optical Programmer | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 12 | 13 | 14 | 15 | |||
A+ | A- | B+ | B- | Z+ | Z- | U+ | ||||||||||
|
|
