| Ask Lasest Price | |
| Brand Name : | Sutai |
| Certification : | ISO.CE,ROHS,TUV |
| Model Number : | ST-60M00630 |
| Price : | 100 |
| Delivery Time : | 3-30 |
| Payment Terms : | TT/LC |
| Supply Ability : | 10000 |
400w high torque servo motor factory customized
Six strength
1.High effiency
2.High precision
3.Energy-saving
4.Warranty one year
5.Closed loop
6.High response
| Packaging Details: | Carton for 2000w high torque servo motor factory customized |
| Delivery Detail: | Depend on your quantity for 200w high torque servo motor factory |
Serious model | 60ST-M 00630 | 60ST-M 01330 | 60ST-M 01330 | ||||||||||||||
Rated power Pn(W) | 200 | 400 | 600 | ||||||||||||||
Rated toque Tn(N.m) | 0.64 | 1.27 | 1.9 | ||||||||||||||
Rated speed n(rpm) | 3000 | 3000 | 3000 | ||||||||||||||
Rated current In(A) | 1.27 | 2.5 | 3.7 | ||||||||||||||
Maximum torque moment Tm(N.m) | 1.9 | 3.82 | 5.73 | ||||||||||||||
Maximum current moment Im(A) | 3.7 | 7.33 | 11 | ||||||||||||||
BEMF constant Ke(v/kr pm) | 28 | 28 | 28 | ||||||||||||||
Torque constant Tt(N.m/A) | 0.42 | 0.5 | 0.55 | ||||||||||||||
Electrical time constant te(ms) | 1.9 | 2.1 | 2.4 | ||||||||||||||
Moment of inertia Jm(Kgcm) | 0.17 | 0.3 | 0.44 | ||||||||||||||
Bearing radial force Fr(N) | 180 | 180 | 180 | ||||||||||||||
Bearing axial force Fa(N) | 90 | 90 | 90 | ||||||||||||||
Motor length L(mm) | 96 | 121 | 146 | ||||||||||||||
Weight Kg | 1.0 | 1.4 | 1.8 | ||||||||||||||
Position feedback devices | 2500pprOptical encoder (incremental) or cosine rotary encoder | ||||||||||||||||
Temperature Sensor | Optional | ||||||||||||||||
Cooling | Fully enclosed , Automatic Cooling | ||||||||||||||||
Insulation class | Class B (130°) | ||||||||||||||||
Protection class | Ip65 , Shaft Ip54 | ||||||||||||||||
Environment | temperature | -25 ~ +40℃(No icing) | |||||||||||||||
Humidity | 95%RH(Non-condensing) | ||||||||||||||||
Environment | Away from corrosive,Flammable gas,oil droplets,dust | ||||||||||||||||
Altitude | The highest elevation of 4000 meters,Altitude of over 1000 meters, for each additional 100 meters, a power reduction of 15% | ||||||||||||||||
Rated conditions | Temperature Rise | When the ambient temperature is 40 ℃, the housing surface temperature 60K | |||||||||||||||
Motor winding plug | 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||||||
U Red | V Yellow | W Blue | GND Yellow/Green | ||||||||||||||
Optical Programmer | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | ||
A+ | A- | B+ | B- | Z+ | Z- | U+ | U- | V+ | V- | W+ | W- | VCC | GND | Ground | |||
All above are conventional products , special products can be customized according to customer requirements

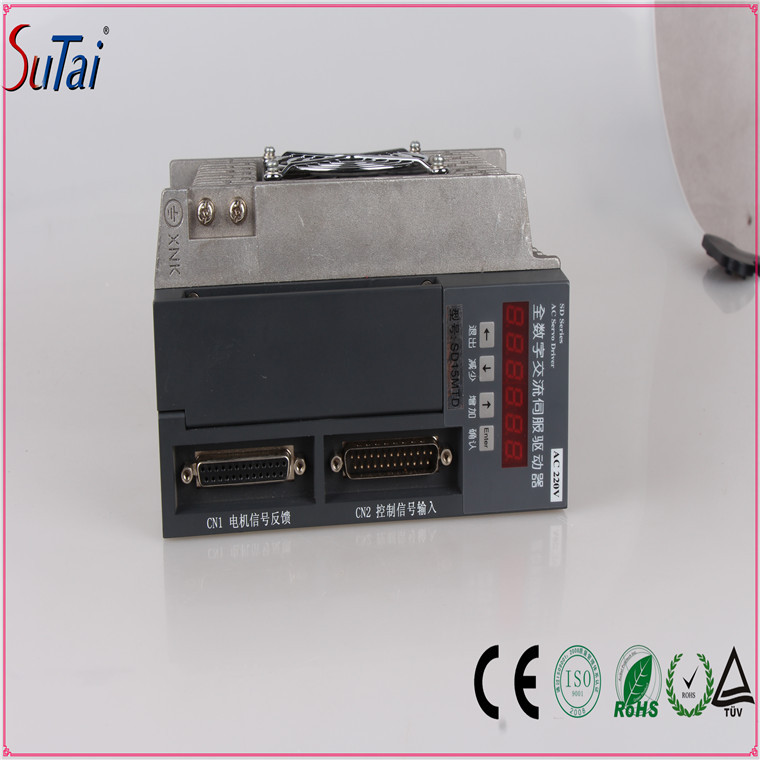

Servo motor driver
|
|
